PG280-12-939-B

DC motor series PG280 with planetary gearbox

Voltage: 12 V
Ratio: 939:1
Speed: 5.7 rpm
Torque: 10 kg-cm
Encoder: no
Gearbox: planetary
Motor: DC brush
Gearbox length (L): 43.7 mm

Series PG280 - DC motor with planetary gearbox
Out of stock
Price and delivery date on request
66,55 € with VAT
55,00 € without VAT
pcs
Detailed technical data Other types from the same series
  • DC carbon-brush motor
  • It contains a filter to suppress electromagnetic interference
  • Bidirectional, the direction of rotation can be set by changing the polarity of the supply voltage
  • Planetary gearbox with metal gears (except first stage)
  • Only first stage is made of plastic for noise reduction purpose
  • Output shaft is supported by a ball bearing

Gearboxes specifications

  • Backlash, at no-load ≤ 2.5 °
  • Radial load ≤ 3.5 kg (10 mm from flange)
  • Shaft axial load ≤ 2.5 kg
  • Shaft press fit force max. ≤ 10 kg
  • Radial play of shaft ≤ 0.05 mm
  • Thrust play of shaft ≤ 0.3 mm
  • Operating temperature range -10...60 °C
  • Operating relative humidity 20...85 %

Drawings

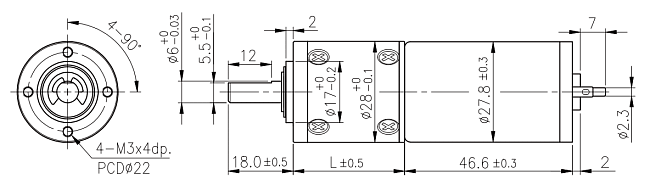

Dimensions of DC motor with planetary gearbox - series PG280
