PG420-12-1470-B

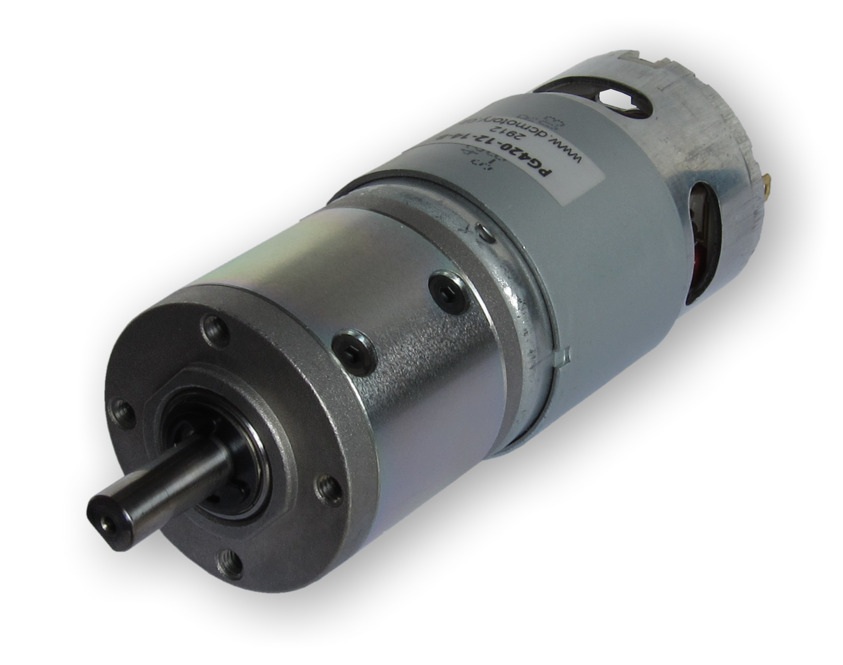

DC motor series PG420 with planetary gearbox
Voltage: 12 V
Ratio: 1470:1
Speed: 4.6 rpm
Torque: 30 kg-cm
Encoder: no
Gearbox: planetary
Motor: DC brush
Gearbox length (L): 59.6 mm
In stock: 3 pcs
Delivery: 5.12. - 12.12.2024
Delivery: 5.12. - 12.12.2024
85,91 € with VAT
71,00 € without VAT
71,00 € without VAT
- DC commutator motor with carbon brushes
- It contains a filter to suppress electromagnetic interference
- Bidirectional, the direction of rotation can be set by changing the polarity of the supply voltage
- Planetary gearbox with metal gears
- Output shaft is supported by a ball bearing

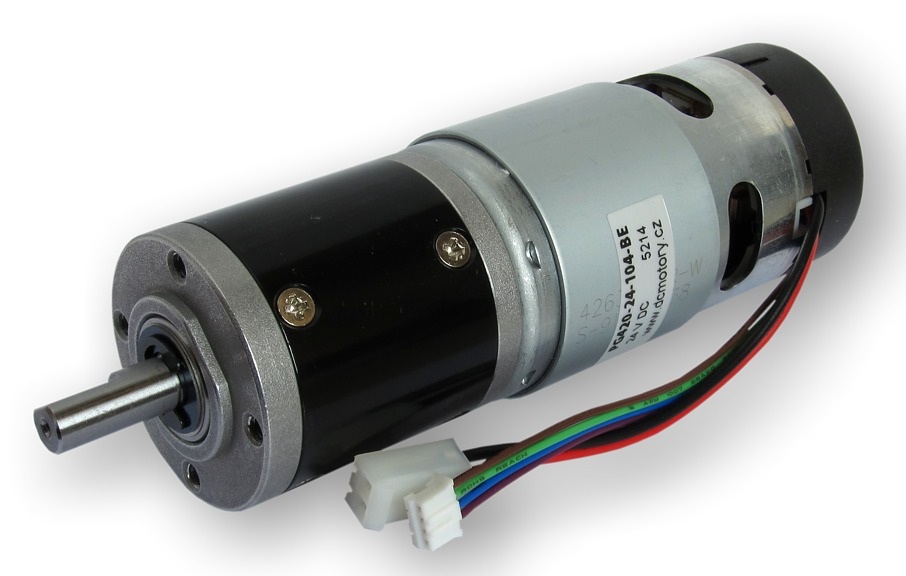

- There is also a version with encoder
Gearboxes specifications
- Backlash, at no-load ≤ 3 °
- Radial load ≤ 8 kg (10 mm from flange)
- Shaft axial load ≤ 3 kg
- Shaft press fit force max. ≤ 15 kg
- Radial play of shaft ≤ 0.05 mm
- Thrust play of shaft ≤ 0.3 mm
- Operating temperature range -10...60 °C
- Operating relative humidity 20...85 %
Drawings
Downloads
- Datasheet - series PG420 (362 kB)
- Parametry enkodéru (314.2 kB)
- Kompletní katalog stejnosměrných motorů s planetovou převodovkou (1.2 MB)
- Prohlášení o shodě (182.1 kB)

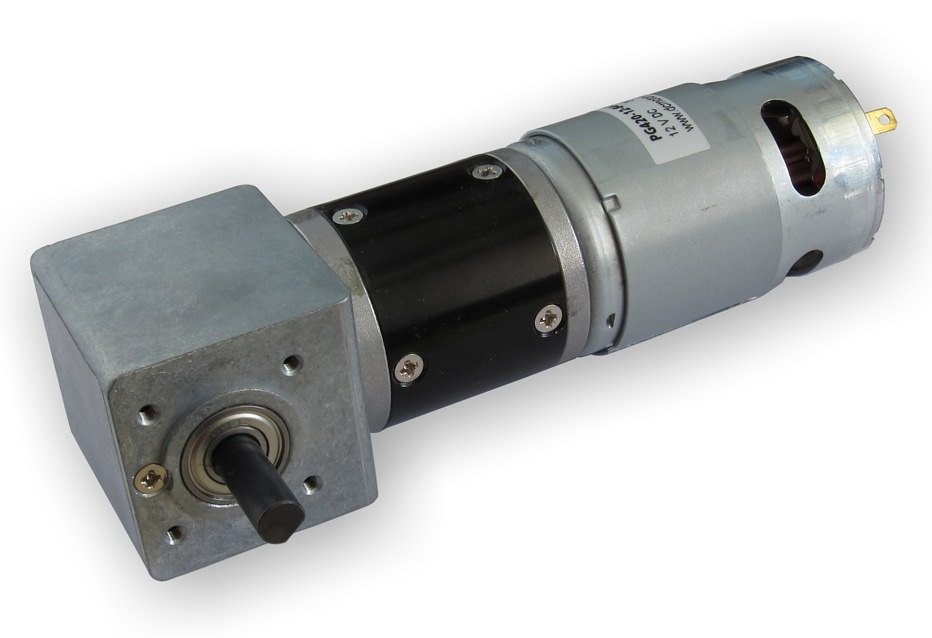

More pictures
