PG429-24-24-B

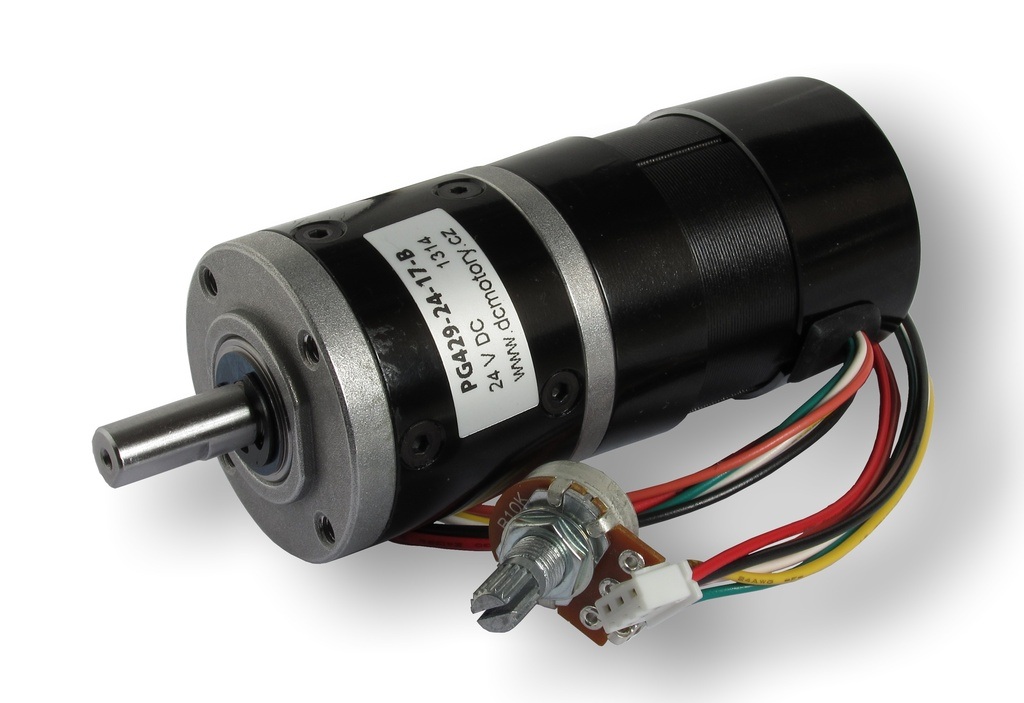

BLDC motor series PG429 with planetary gearbox

Voltage: 24 V
Ratio: 24:1
Speed: 183 rpm
Torque: 6.2 kg-cm
Encoder: no
Gearbox: planetary
Motor: BLDC - brushless
Gearbox length (L): 39.2 mm

Series PG429 - BLDC motor with planetary gearbox
Out of stock
Price and delivery date on request
157,30 € with VAT
130,00 € without VAT
pcs
Detailed technical data Other types from the same series
  • DC brushless motor
  • It contains the motor driver
  • Simple direction and speed control
  • Planetary gearbox with metal gears
  • Output shaft is supported by a ball bearing

Gearboxes specifications

  • Backlash, at no-load ≤ 3 °
  • Radial load ≤ 8 kg (10 mm from flange)
  • Shaft axial load ≤ 3 kg
  • Shaft press fit force max. ≤ 15 kg
  • Radial play of shaft ≤ 0.05 mm
  • Thrust play of shaft ≤ 0.3 mm
  • Operating temperature range -10...60 °C
  • Operating relative humidity 20...85 %

Drawings

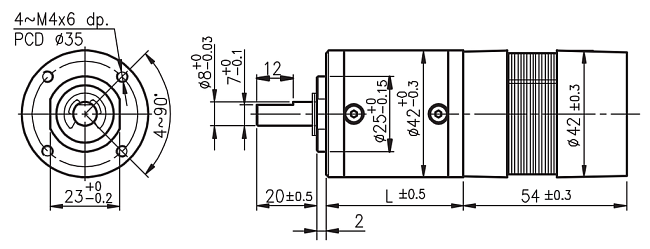

Dimensions of BLDC motor with planetary gearbox - series PG429
