PG229-12-1249-B

BLDC motor series PG229 with planetary gearbox

Voltage: 12 V
Ratio: 1249:1
Speed: 5 rpm
Torque: 3 kg-cm
Encoder: no
Gearbox: planetary
Motor: BLDC - brushless
Gearbox length (L): 29.0 mm

Out of stock
Price and delivery date on request
106,48 € with VAT
88,00 € without VAT
pcs
Detailed technical data Other types from the same series
  • DC brushless motor
  • It contains the motor driver
  • Simple direction and speed control
  • Planetary gearbox with metal gears (except first stage)
  • Only first stage is made of plastic for noise reduction purpose
  • Output shaft is supported by a ball bearing

Drawings

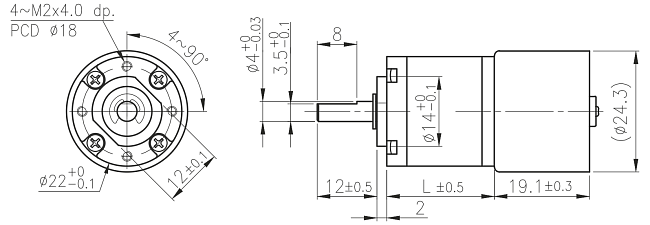

Series PG220 - dimensions

Downloads

More pictures

BLDC motor PG229 - with planetary gearbox - rear view
BLDC motor PG229 - with planetary gearbox - rear view
