PG359-12-721-B

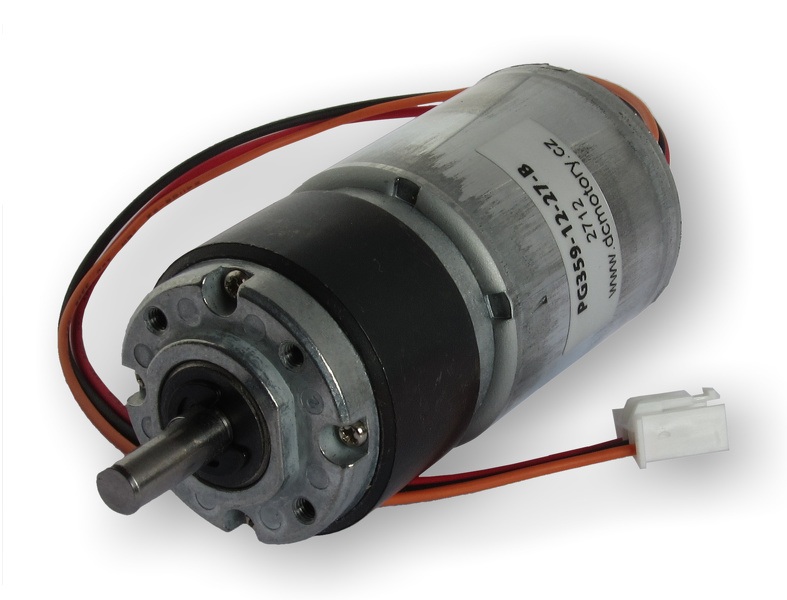

BLDC motor series PG359 with planetary gearbox

Voltage: 12 V
Ratio: 721:1
Speed: 3.4 rpm
Torque: 12 kg-cm
Encoder: no
Gearbox: planetary
Motor: BLDC - brushless
Gearbox length (L): 41.3 mm

Series PG359 - BLDC motor with planetary gearbox
In stock: 5 pcs
Delivery: 5.12. - 12.12.2024
56,87 € with VAT
47,00 € without VAT
pcs
Detailed technical data Other types from the same series

Gearboxes specifications

  • Backlash, at no-load ≤ 2.5 °
  • Radial load ≤ 3.5 kg (10 mm from flange)
  • Shaft axial load ≤ 2.5 kg
  • Shaft press fit force max. ≤ 10 kg
  • Radial play of shaft ≤ 0.05 mm
  • Thrust play of shaft ≤ 0.3 mm
  • Operating temperature range -10...60 °C
  • Operating relative humidity 20...85 %
  • DC brushless motor
  • It contains the motor driver
  • Simple direction control
  • The extended version also allows changing the speed
  • Planetary gearbox with metal gears (except first stage)
  • Only first stage is made of plastic for noise reduction purpose
  • Output shaft is supported by a ball bearing

Drawings

Dimensions of BLDC motor with planetary gearbox - series PG359
